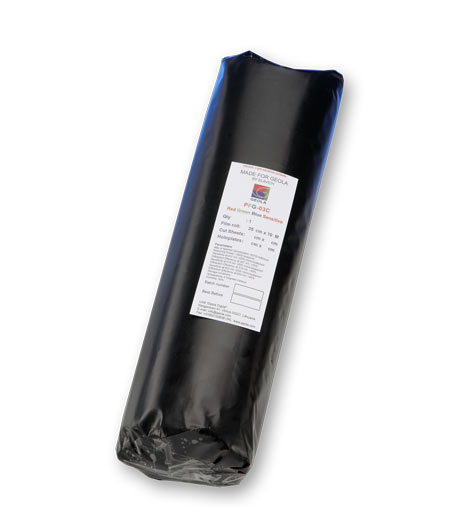

PFG 03C 350x10 Film Roll Geola

PFG-03C Film rolls

579,00€

Panchromatic Photofilm
Size: 350mm x 10m

Designed for the production of full-colour reflection holograms using CW or multi-pulsed laser radiation.
Guaranteed lifetime : 12 months
Observed lifetime : 18 months

Note: Prices on this website are without VAT – i.e. if you are living outside EU or have valid VAT payee ID, you will pay the price indicated here. Otherwise, as well as for Lithuanian companies,  21% VAT will be added.

PFG-03C is designed for the production of full-colour reflection holograms using CW or multi-pulsed laser radiation.

A spectral sensitivity curve of the PFG-03C material is shown in Fig.1. Diffraction efficiency versus exposure is shown in Fig.3. The maximum diffraction efficiency in the blue region is >25% and in the green and red regions >45%.

Typical sensitivity values for PFG-03C are 2mJ/cm2 and 3mJ/ cm2 for the blue and red/green regions respectively. The grain size distribution curve for PFG-03C is shown on Fig.2. Difraction efficiency – on Fig. 3.

Figure1: Spectral Sensitivity Curve For PFG 03C (gray) And PFG 03M (black)
Figure 2: PFG 03 Grain Size Distribution Curve
Figure 3: PFG 03C Diffraction Efficiency Curve

Processing and Handling Recommendations

  • Unseal and process in indirect dark green non-actinic light.
  • Temperature of processing solutions – 20°C.
  • Storage condition: Humidity 45% and 4 deg. Celsius.

Table below shows recommended processing scheme for use with PFG-03C and GEO-03 after CW, multi-pulse or pulsed exposure.

Procedure  PFG-03, CW exposure GEO-03, CW exposure GEO-03, pulsed exposure
Exposure: 1.5 – 2.0 mJ/cm2 120-550microJ/cm2
Development/Hardening SM-6 + Formaldehyde 37% (10 ml to 1 liter of developer),2-5min – until unexposed areas will darken to 1,5-2 density
Wash Water, 2min
Bleach PBU-Amidol   5 min: ~ 2 min until expesed areas became clear (if exposure dose and developing time were right) plus 3 min.
Wash Water 5 min.
Drying in Alcohol bath
50% Isoprophyl alcohol 4min
Drying Slow Air

Download processing instructions from here.

Storage
The developer solution without Formaldehyde remains developing properties while stored for three days. Add formaldehyde half an hour before processing.
Bleaching solution can be stored for about one week.

Processing even one plate in the developing and bleaching solutions noticeably reduce their lifetime to 24-48 hours.

All solutions should be stored in the closed dark glass or non-active dark plastic bottles. You can store them in a room temperature, but it is better to store them in the refrigerator at +5 degrees Celsius.

Work with chemicals
It is important to follow good laboratory practice while processing the photomaterials. The chemicals included in Geola’s set are not poisonous, however, please wipe up any spillage as soon as it occurs and use the polythene gloves. Download safety instructions here.
