Description
MID14C Motorized Mechanical Diaphragm
The MID14C is precise motorized iris diaphragm, which is adjustable either mechanically or from PC via intuitive graphic user interface (GUI). Due to the unique design, a aluminum blades forming square diaphragm always remains centered about an internal SM1–threaded hole. Even while tuned from 0 to 14 mm size, the diaphragm always maintains the centricity of squared aperture to round external diaphragm. The blades are black to reduce unwanted reflections. The MID14C motorized iris diaphragm adjustment precision is ~10 µm per min step.
Square Iris diaphragm is also designed to be compatible with 60mm standard (for example Thorlabs) Cage System.
MID14C Diaphragm Features
- Always square and centered!
- Motorized adjustment range from 0 to 14 mm
- Aperture adjustment precision ~10 µm within full adjustment range (repeatability)
- Housing contains SM1–threaded hole for mounting external optics
- USB connection interface for PC control
- A bigger aperture size is available on request.
MID14C Diaphragm Specifications
| Specification | Value |
|---|---|
| Microstep Size (Default Resolution) | 10 µm |
| Built-in Controller | No |
| Controller supplied | GSMC |
| Repeatability | ~ 10 µm |
| Backlash | < 30 µm |
| Encoder Type | None |
| Closing Time (Max to Min) | 11 sec |
| Guide Type | Plain bearing |
| Motor Steps Per Revolution | 24 |
| Default Resolution | 1/64 of a step |
| Mechanical Drive System | Lead screw |
| Limit or Home Sensing | Optical switch |
| Axes of Motion | 1 |
| Mounting Interface | M3 threaded holes |
| Optics (objective) Mounting Interface | M25 x 0.5 |
| Operating Temperature Range | -35 to 70 °C |
| Vacuum Compatible | No |
| RoHS Compliant | Yes |
| CE Compliant | Yes |
MID14C Iris Diaphragm Control Software View
MID14C Dimensions
The MID14C diaphragm is compatible with standard 60mm Cage System.
MID5C Diaphragm Specifications
| Specification | Value |
|---|---|
| Diaphragm Adjustment Range | 0 to 5 mm |
| Microstep Size (Default Resolution) | 1 µm |
| Built-in Controller | No |
| Controller supplied | GSMC-E Recommended |
| Repeatability | < 1 µm |
| Precision | < 0.4 µm |
| Closing Time (Max to Min) | ~3 sec |
| Guide Type | Plain bearing |
| Motor Steps Per Revolution | 24 |
| Default Resolution | 1/512 of a step |
| Mechanical Drive System | Lead screw |
| Axes of Motion | 1 |
| Mounting Interface | M3 threaded holes |
| Optics (objective) Mounting Interface | M25 x 0.5 |
| Operating Temperature Range | -35 to 70 °C |
| Vacuum Compatible | No |
| RoHS Compliant | Yes |
| CE Compliant | Yes |

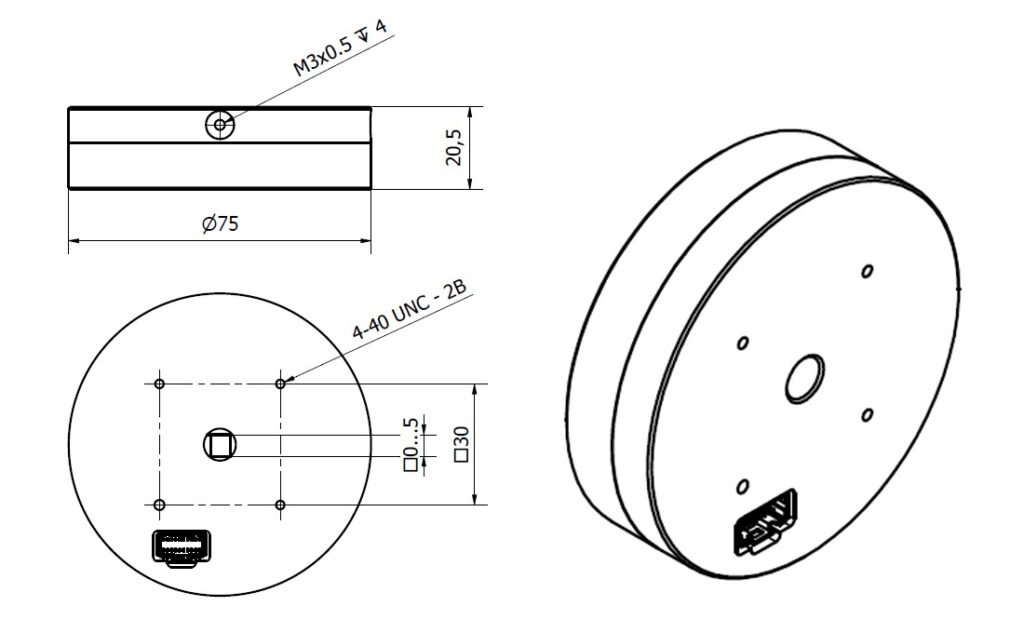

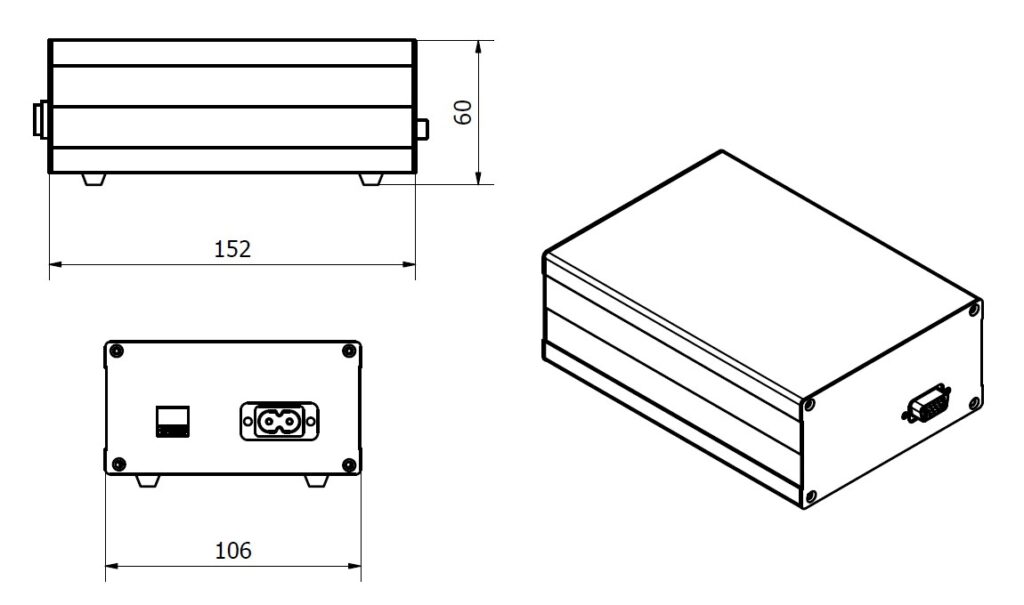

MID5C Dimensions
Motorized Slit Diaphragm MSD12C
The MSD12C is precise motorized slit diaphragm controlled via PC and intuitive graphic user interface (GUI). Due to the unique design, an aluminum independent (X & Y), center-oriented blades forming slit diaphragm always remains centered about an “optical axis” including internal SM1–threaded hole. Even while tuned from 0 to 12 mm size, the diaphragm while independently changing magnification always maintains the centricity of aperture to round external diaphragm. The slit blades are black to reduce unwanted reflections. The MSD12C motorized slit diaphragm adjustment precision is ~10 μm per min step.
Motorized Slit Diaphragm is also designed to be compatible for both Stand-alone and 60mm standard (for example Thorlabs) Cage System.
MSD12C Diaphragm Specifications
| Specification | Value |
|---|---|
| Microstep Size (Default Resolution) | 10 μm |
| Built-in Controller | No |
| Controller supplied | GSMC |
| Repeatability | ~ 10 μm |
| Backlash | < 30 μm |
| Encoder Type | None |
| Closing Time (Max to Min) | ~10 sec |
| Guide Type | Plain bearing |
| Motor Steps Per Revolution | 24 |
| Default Resolution | 1/64 of a step |
| Limit or Home Sensing | Optical switch |
| Axes of Motion | 2 |
| Mounting Interface | M3 threaded holes |
| Optics (objective) Mounting Interface | M25 x 0.5 |
| Vacuum Compatible | No |
| RoHS Compliant | Yes |
| CE Compliant | Yes |
MSD12C Diaphragm Features
- X & Y independent adjustable slits
- Square or rectangle – always centered
- Compatible with standard 60mm optical cage system
- Motorized adjustment ranges from 0 to 12 mm
- Aperture adjustment precision ~10 μm within full adjustment range (repeatability)
- Housing contains SM1–threaded hole for mounting external optics
- USB connection interface for easy PC control
- A customized aperture size can be designed on request
MSD12C Dimensions
The updated MSD12C housing has one M4 threated hole for mounting to general lab post or desired setup.
