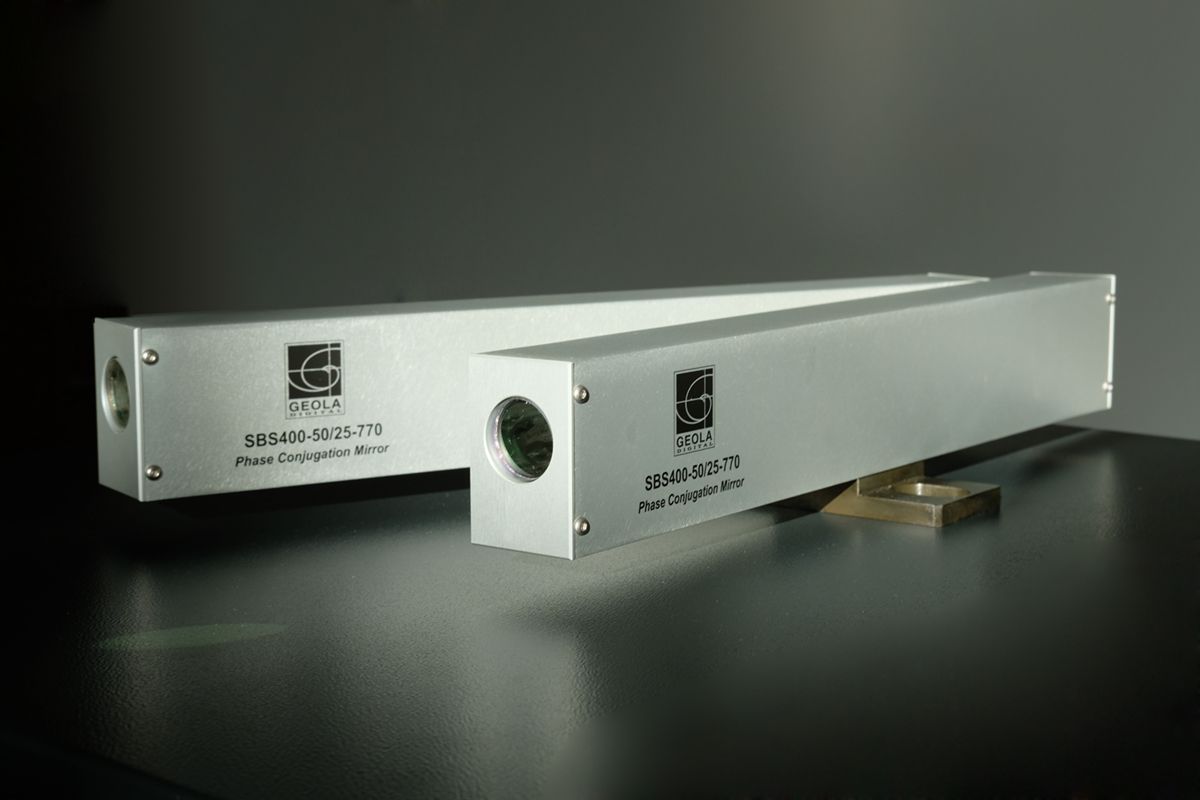

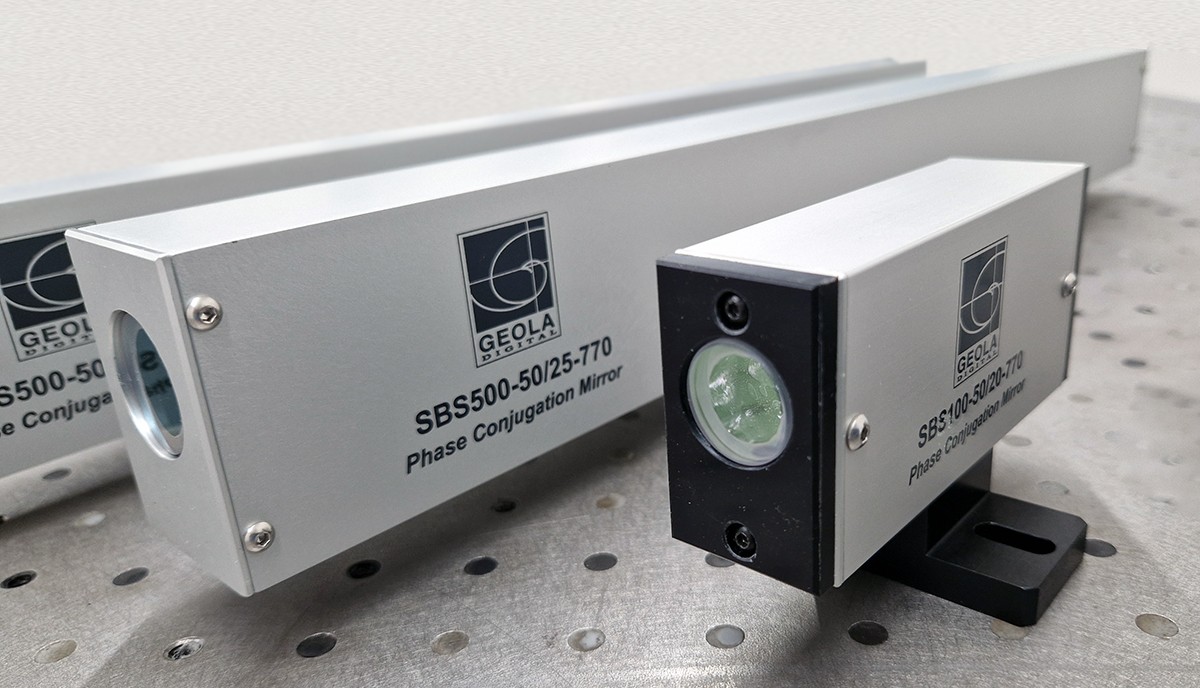

SBS Phase Conjugating Cells
We are manufacturing various SBS cells only from non-toxic liquids. Therefore our cells could be also used for medical or OEM equipment.
- Non-toxic (fluorinert) SBS active liquids available, subject to the input laser radiation parameters;
- Random positioning and mounting to the laser breadboard by eccentric clamp;
- Modules with build-in frontal holder for the focusing lens;
- Custom cell length, mounting and its designs are welcome!
Features
- Non-toxic SBS active liquids available (fluorinert and other), subject to application and an input laser radiation parameters
- Random positioning and mounting to the laser breadboard by eccentric clamp
- Modules with build-in frontal holder for the focusing lens
- Custom cell length, mounting and its designs are welcome
SBS cell application
- Spatial dependence: Phase-conjugate mirror; beam cleanup; beam combining
- Time dependence: Pulse compression (shortening), reshaping; increasing self-phase modulation
Liquids for SBS cells
Physical and SBS-related properties of some typical liquid SBS media.
“—” means no relevant data
| Liquid | Refractive index (n) | Density (g/cm3) | SBS gain coefficient (cm/GW) | Phonon lifetime (ns) | Brillouin linewidth (MHz) | Brillouin shift (MHz) |
| H2O | 1.324 | 1.0 | 3.8 | 1.87 | 317 | 5690 |
| CS2 | 1.632 | 1.26 | 68 | 6.4 | 52.3 | 5850 |
| GeCl4 | 1.460 | 1.87 | 12 | 2.3 | 69.2 | 2100 |
| SnCl4 | 1.360 | 2.33 | 11 | 1.75 | 182 | 2210 |
| SiCl4 | 1.410 | 1.48 | 10 | — | — | 2160 |
| TiCl4 | 1.610 | 1.73 | 14 | 1.47 | 108.3 | 3000 |
| CCl4 | 1.460 | 1.60 | 6.0 | 0.6 | 520 | 4390 |
| Methanol | 1.328 | 0.81 | 13 | 1.27 | 250 | 4250 |
| Ethanol | 1.361 | 0.79 | 12 | 0.9 | 353 | 4550 |
| Acetone | 1.358 | 0.79 | 15.8 | 2.67 | 224 | 4600 |
| Toluene | 1.496 | 0.87 | 13 | 1.27 | 250 | 5910 |
| n-hexane | 1.375 | 0.66 | 26 | 1.43 | 222 | 4402 |
| Cyclohexane | 1.426 | 0.78 | 6.8 | 0.41 | 774 | 5550 |
| FC-40 | 1.290 | 1.87 | 3.8 | 0.2 | 1292 | 1386 |
| FC-43 | 1.291 | 1.86 | 1.3 | 0.2 | — | 1073 |
| FC-70 | 1.303 | 1.94 | 0.2 | 0.031 | — | 1540 |
| FC-72 | 1.251 | 1.68 | 6 – 6.5 | 1.2 | 270 | 1100 |
| FC-75 | 1.276 | 1.77 | 4.5 – 5 | 0.9 | 350 | 1340 |
| FC-77 | 1.280 | 1.78 | 5.1 | 0.7 | 486 | 1360 |
| FC-84 | 1.261 | 1.73 | 6.0 | 0.9 | 371 | 1221 |
| FC-87 | 1.238 | 1.65 | 6.6 | 1.1 | 297 | 1226 |
| FC-770 | 1.270 | 1.79 | 3.5 | 0.57 | — | 1081 |
| FC-3255 | 1.270 | 1.77 | 4.4 | 0.6 | 533 | 1375 |
| FC-3283 | 1.281 | 1.83 | 4.2 | 0.6 | 554 | 1281 |
| HT-55 | 1.280 | 1.65 | 6.2 | 1.0 | 318 | 1112 |
| HT-70 | 1.280 | 1.68 | 5.7 | 0.9 | 359 | 1166 |
| HT-110 | 1.280 | 1.72 | 4.7 | 0.6 | 553 | 1289 |
| HT-135 | 1.280 | 1.73 | 4.4 | 0.4 | 718 | 1294 |
| HT-200 | 1.281 | 1.79 | 3.8 | 0.2 | 1724 | 1446 |
| HT-230 | 1.283 | 1.83 | 4.1 | 0.1 | 3159 | 1515 |
| HT-270 | 1.283 | 1.85 | 2.3 | 0.1 | 8401 | 1697 |
| DET | 1.280 | 1.70 | 5.7 | 0.8 | 405 | 1143 |

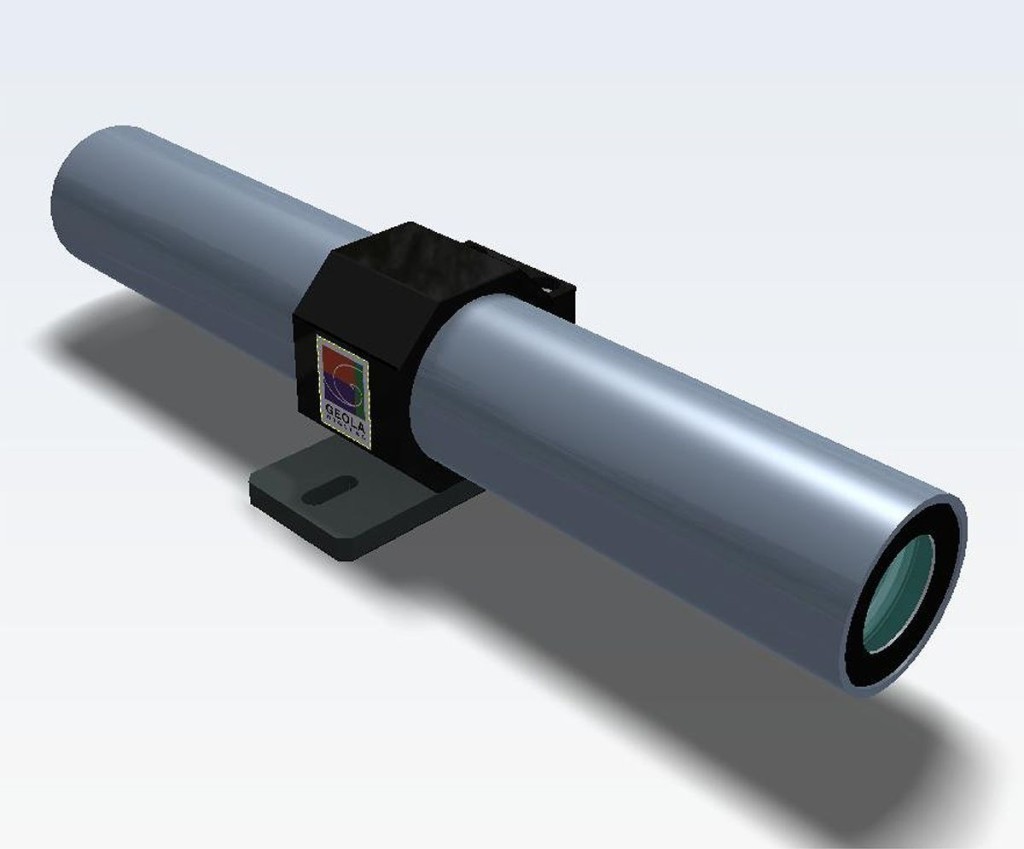

Design and Dimensions
