ZX Stage
Geola manufactures a custom made XYZ axis mechanical positioning and rotational stages that utilize linear direct-drive servomotors, as well as ball-screw servomotor or step motors. Travel distances for our linear XZ stages range from 25 mm to 1000 mm. Our positioning stages are utilized in high-performance applications in industrial robots, photonics, micro-machining and other industrial automation applications. You are welcome to send your request for customized solution manufacturing and implementation.
Geola manufactures a custom made XYZ axis mechanical positioning and rotational stages that utilize linear direct-drive servomotors, as well as ball-screw servomotor or step motors. Travel distances for our linear XZ stage range from 25 mm to 1000 mm. Our positioning stages are utilized in high-performance applications in industrial robots, photonics, micro-machining and other industrial automation applications. You are welcome to send your request for customized solution manufacturing and implementation.
Specifications
| Load capacity | 40kg max |
| Drive method | X axis: linear motor Z axis: ball screw with servomotor |
| Travel range | X axis: 1000 mm Z axis: 600 mm |
| Repeatability | X axis: ±0.001 mm Z axis: ±0.01 mm |
| Max speed | X axis: up to 2000 mm/s Z axis: up to 250 mm/s |

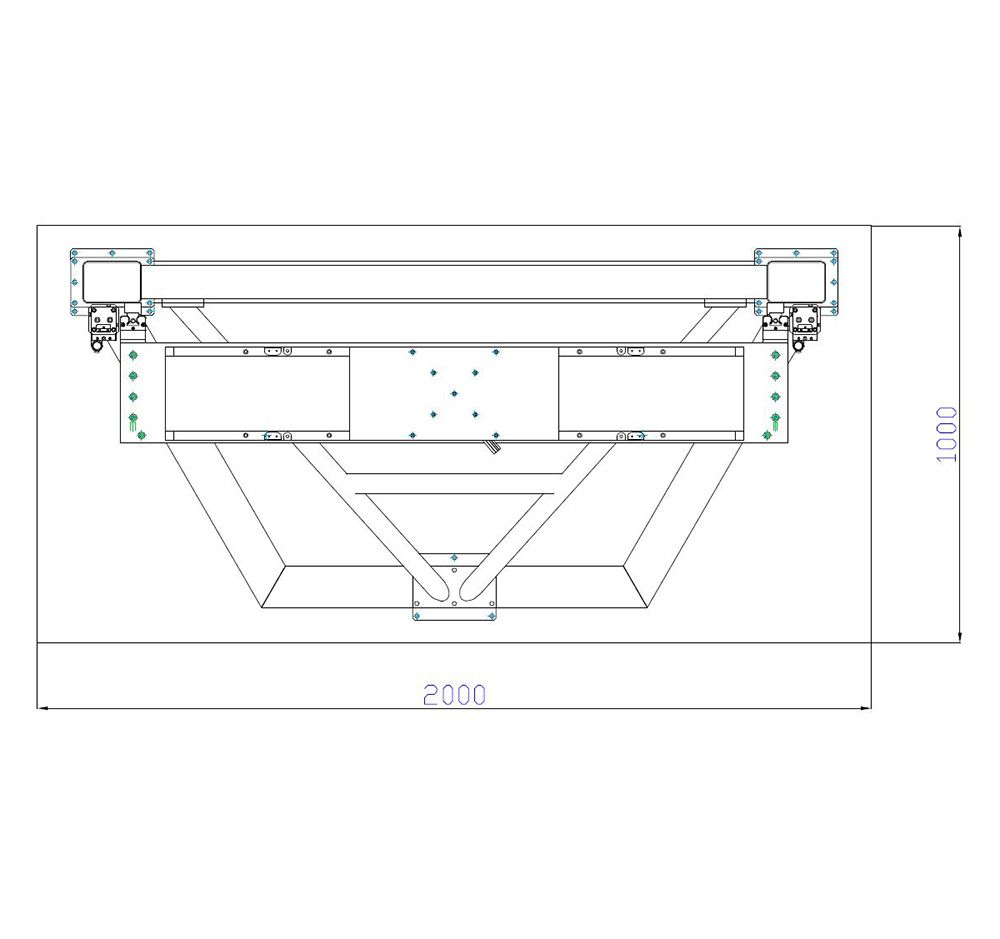

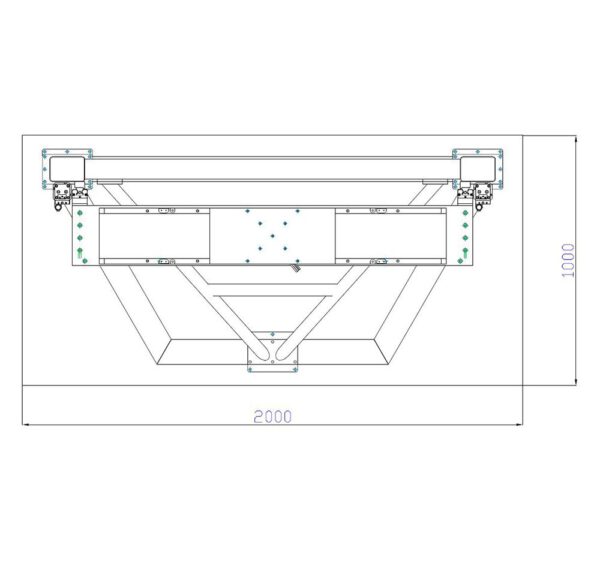

| Dimensions | X: 2000 mm Y: 1000 mm Z: 1850 mm |
