High Energy Lasers

We are manufacturing these series of high energy lasers:

  • GxJ series lasers produce single output near-diffraction limited single-longitudinal mode (SLM) super-Gaussian radiation in the nanosecond regime from 1 to 16 J per pulse (fundamental harmonics);
  • GxJ TWIN series lasers produce dual output near-diffraction limited single-longitudinal mode (SLM) super-Gaussian radiation in the nanosecond regime from 2 to 20 J per pulse (fundamental harmonics);

Output wavelengths – 1064 nm, 532 nm, 355 nm.

Download brochure:

Category:

The GxJ series high energy single shot Hybrid Nd:YLF/Phosphate Glass lasers

g2j_new_small

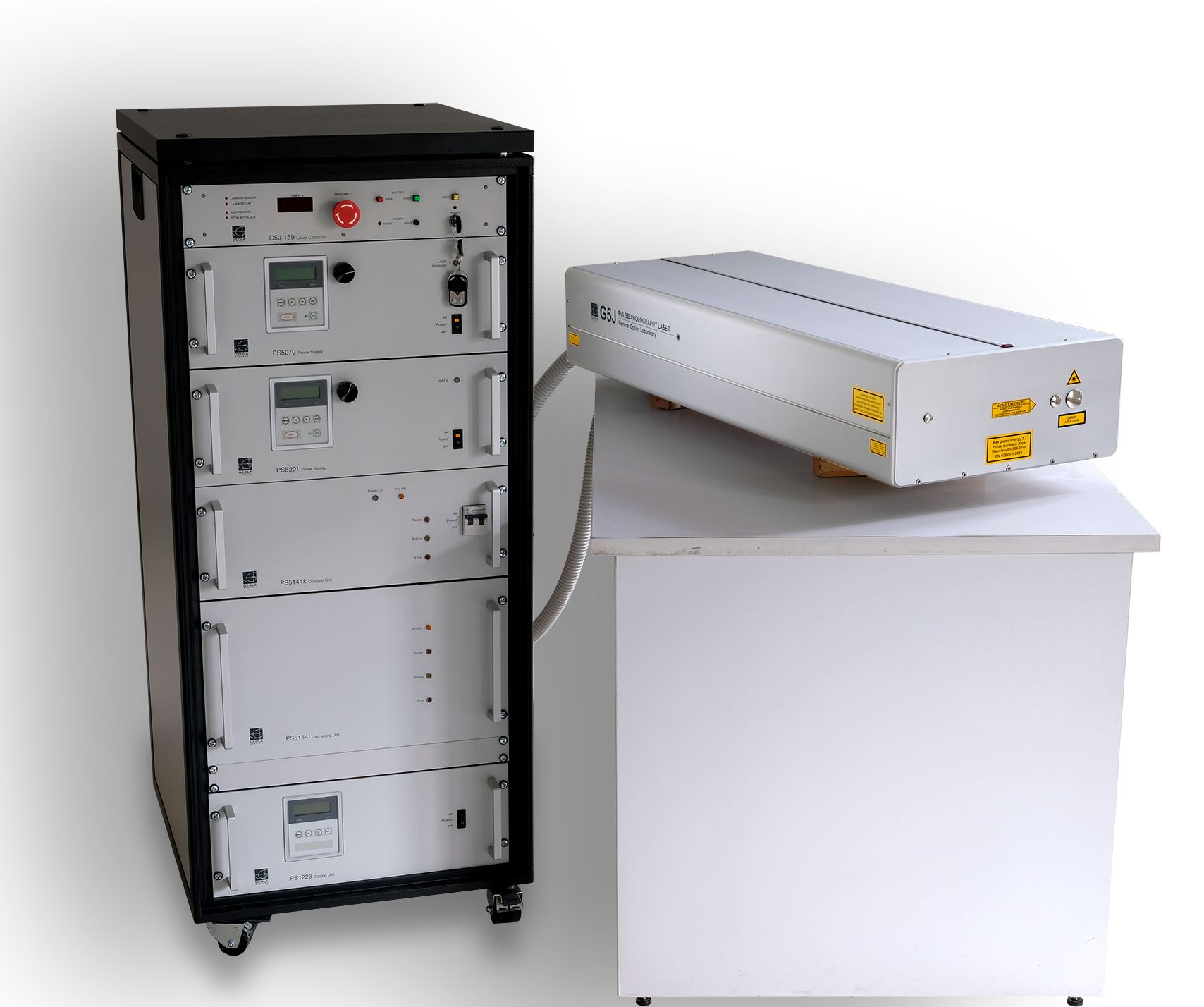

The GxJ series comprises a family of 4 lasers each of which based on a Nd:YLF oscillator and one or more Nd:Phosphate Glass amplifiers. The lasers produce near-diffraction limited single-longitudinal mode (SLM) Gaussian radiation in the nanosecond regime from 1 to 16 J per pulse (fundamental harmonic). Design features include a highly stable EO or passively Q-switched, linear telescopic or ring-cavity oscillator, 2-pass amplification using high energy Brillouin phase conjugation (SBS) and optional frequency conversion to the second or third harmonics by DKDP. In addition to constituting highly versatile laboratory tools all GxJ lasers are rigorously designed to meet the high standards required for scientific interferometric purpose or holography applications, where smooth beam shape and long coherence length is of key importance.

APPLICATIONS

  • Holographic applications;
  • Interferometer applications;
  • Plasma research;
  • Seeding of amplification cascades;
  • Absorption spectroscopy of laser induced plasma;
  • Apply for Your application.

SYSTEM FEATURES

  • Coherence length exceeding of > 10m length;
  • Optimized laser characteristics for display and technical holography applications;
  • Remote control via wireless unit;
  • Low electrical consumption.
  • Laser energy meters are included in standard package
  • PC control via RS232 using advanced Geola software or LabView drivers (optional);
  • Lasers are CE marked according to IEC 60825-1:2001/EN 60825-1:2001.k.



Technical specifications
Model specifications G1J G2J G5J G8J
Output Wavelength, nm: 1053 526.5 351 1053 526.5 351 1053 526.5 351 1053 526.5 351
Output energy, Joules: 2 1 0.4 4 2 0.9 10 5 16 8
Pulse duration, ns: 34 32 31 34 32 31 30 28 30 28
Beam Diameter (1/e²), mm: <9 <10 <16 <18
Beam Divergence: Near Diffraction limit
Coherence Length(1): > 10 m
Pulse Energy Stability(2): 5% at 526.5 nm
Beam Profile: Near Gaussian in near field and Quasi-Gaussian in far field
Pulse contrast ratio at 1053nm: >105:1
Repetition rate – Pilot Mode: 0.5…2 Hz
Repetition rate – High Energy Mode: 1 pulse per 2 min 1 pulse per 3 min
Polarization: Horizontal, > 98% @ 1053nm
Optical Pulse Jitter(3): < 2.5us for Passive Q-Switch and ~ 1 ns for E-O Q-Switch
Triggering: External/Internal
  Dimensions
Laser Head: (W x H x L), mm 1105 x 320 x 225 1000 x 468 x 225
Power & Cooling Cabinet:
(W x H x L), mm
50 x 880 x 600 550 x 1250 x 600
Umbilical Length, m: ~ 2.5
  Environmental requirements
Cooling requirements: (Water flow for 20oC water temperature) < 10 liters/minute
Room temperature: 22-24oC
Relative Humidity:(non-condensing) < 75 %
Mains Voltage: 210…240 VAC, single phase 50/60 Hz
Power Consumption: < 1 kW < 2.5 kW

(Geola Digital reserves the right to change specification without notice)

(1) Coherence length at 526.5nm
(2) Std.Dev. at High Energy Mode
(3) Std.Dev. with respect to External sync pulse signal

OPTICAL SCHEMES AND CHARACTERISTICS

Optical Scheme For G1J And G2J
Optical scheme for G1J and G2J
Optical Scheme For Models G5J And G8J
Optical scheme for models G5J and G8J
Typical Temporal Pulse Shape G5J – 526.5 Nm
Typical temporal pulse shape G5J – 526.5 nm
G5J Beam Profile
G5J beam profile

The GxJ-TWIN Double Output SLM Nd:YLF/Glass LASERS

g-twin

The GxJ-TWIN series comprises a family of lasers which based on two mutually coherent and independently tunable outputs ports; basically consisting from a Nd:YLF oscillator, pre-amplifier and one pair or more Nd:Phosphate Glass amplifiers. The lasers produce near-diffraction limited single-longitudinal mode (SLM) super-Gaussian radiation in the nanosecond regime from 2 to 20 J per pulse (fundamental harmonic). Design features include a highly stable EO or passively Q-switched ring or linear cavity oscillator, 2-pass amplification using high energy Brillouin phase conjugation (SBS) and optional frequency conversion to the second or third harmonics by DKDP. All GxJ-TWIN lasers are rigorously designed to meet the high standards required particularly for scientific interferometric or holography application purposes, where double output mutually-coherent smooth beam shape and long coherence length is of key importance.

Download GxJ-TWIN Double Output laser searies leaflet

APPLICATIONS

  • Interferometric applications;
  • Holographic applications;
  • Plasma studies;
  • Seeding of amplification cascades;
  • Laser spectroscopy;
  • Apply for Your application.

SYSTEM FEATURES

  • High pre-Pulse contrast 105:1 ration
  • Coherence length exceeding of > 10m length;
  • Single source, mutually-coherent and independently tunable channels;
  • Optimized laser characteristics for display and technical holography applications;
  • Remote control via Wireless unit;
  • PC control via RS232 using advanced Geola software or LabView drivers (optional);
  • Unique very compact and cost-effective design;
  • Lasers are CE marked according to IEC 60825-1:2001/EN 60825-1:2001;
  • Two channel laser energy meters are included in standard package



Technical specifications
Model specifications G8J-TWIN G20J – TWIN
Output Wavelength, nm: 1053 526.5 1053 526.5
Output energy(0), Joules: 2 X 4 2 X 2 2 x 10 2 X 5
Pulse duration, ns: ~ 34 ~32 ~ 30 ~ 28
Beam Diameter (1/e²), mm: < 9 < 16
Beam Divergence: Near Diffraction limit
Coherence Length(1): > 10 m
Pulse Energy Stability(2): 5% at 526.5 nm
Beam Profile: Near Gaussian in near field and Quasi-Gaussian in far field
Pulse contrast ratio at 1053nm: >105:1
Repetition Rate – Pilot Mode: 0.5…2 Hz
Repetition Rate – High Energy Mode: 1 pulse per 2 min 1 pulse per 3 min
Polarization: Vertical, > 98% @ 1053nm
Optical Pulse Jitter(3): < 10 ms for Passive Q-Switch and  0.5 ns for E-O Q-Switch
Triggering: External/Internal
Remote Control: Wireless
  Dimensions
Laser Head: (W x H x L), mm 1105 x 610 x 225 1100 x 780 x 225
Power & Cooling Cabinet: (W x H x L), mm 550 x 975 x 600 (TWIN) 550 x 860 x 600
Umbilical Length, m: 2.5
  Environmental Requirements
Cooling requirements: (Water flow for 20oC water temperature) < 10 liters/minute
Room temperature: 18-25oC
Relative Humidity: (non-condensing) < 70 %
Mains Voltage: 210…240 VAC, single phase 50/60 Hz
Power Consumption: < 2.5 kW < 3.5 kW

(Geola Digital reserves the right to change specification without notice)

(0) Other energy levels are available
(1) Coherence length at 526.5 nm
(2) Std.Dev. at High Energy Mode
(3) Std.Dev. with respect to External sync pulse signal
