Description
The SUB300T series model is a water-cooled Electro-Optically Q-switched DPSS laser, which have electronically tunable pulse duration ranging 350…2200 ps. Laser delivers up to 300 mJ energy at 1064nm wavelengths at 50 Hz repetition rate. Laser design comprising short cavity MO-PA in conjunction with power amplifiers based on long lasting VCSEL pump technology. The laser design assures extremely stable output parameters performance, where ≤ 200 ps optical jitter is welcome point for laser use in any scientific and industrial application. Due to relatively high output energy, good M2 ≤ 1.3 parameter and short sub-ns pulse duration, laser delivers peak power up to 857 MW (1064 nm), 457 MW (532 nm) and 257 MW (355nm). The harmonic conversion module to green (532 nm) and ultraviolet (355 nm) are available in default laser configuration.
Typical Laser Specifications*)
| Model | SUB300T |
|---|---|
| Wavelength 1) | 1064/532/355 nm |
| Pumping type AMPL | VCSEL |
| Output Energy (1064/532/355 nm) | up to 300/160/90 mJ |
| Pike power @ 350ps 300/160/90 mJ relatively | 857/457/257 MW |
| Tunable pulse duration 2) | 350…2000 ps |
| Pulse to pulse energy stability 3) | < 1 % RMS |
| Power drift 4) | ± 3.0 % |
| Pulse repetition rate 5) | 10/20/30/50 Hz |
| Beam profile | Near Gaussian |
| M2 | ≤1.3 |
| Beam divergence 6) | < 5 mrad |
| Polarization vs harmonics | Linear, P/S/P |
| Spectral linewidth | SLM |
| Beam pointing stability 7) | ≤ 50 μrad |
| Typical beam diameter 8) | ~ 9 mm |
| Optical jitter 9) | ≤ 200 ps RMS |
| Dimensions (preliminary) | |
| Laser head (W × L × H) | 600 x 552 x 673 mm |
| Controller unit (W × L × H) | 1302 x 445 x 217 mm |
| Umbilical length | 1.5 m |
| Operating requirements | |
| Cooling requirements | Water / Air Chiller |
| Ambient temperature | 23 – 25 °C |
| Relative humidity (non-condensing) | 10 – 80 % |
| Mains voltage 10) | 230 VAC, single phase, 50-60 Hz |
| Power consumption | < 900 W |
*) Typical specifications are illustrative;
they are indications of typical
performance and will vary with each
unit we manufacture. Due to
continuous improvements all
specifications are subject to change.
Unless stated otherwise all
specifications are measured at
1064nm.
1) Other wavelengths may be also
available on request.
2) Electronically tunable FWHM level at
1064 nm.
3) Averaged from 60 seconds time
interval.
4) Over 5-hour period after max 5
minutes of warm-up when ambient
temperature variation is less than
±1°C.
5) Factory-set pulse repetition rate is
fixed at one max repetition rate.
6) Full angle measured at the 1/e2 level.
7) RMS value measured from 60 seconds
time interval.
8) Beam diameter is measured at 20 cm
distance from laser output at the 1/e2
level.
9) In respect to external Q-switch
triggering rising edge pulse.
10) Laser can be powered from
appropriate different mains on
request. Inquire for details.
Application
- LIBS (Light Induced Breakdown Spectroscopy)
- Mass Spectroscopy (Time of flight mass spectrometry)
- LIF (Light Induced Fluorescence)
- LIDAR (Light Detection and Ranging)
- Nonlinear spectroscopy
- Remote sensing
- Satellite ranging
- Material processing
Dimensions SUB50A-700

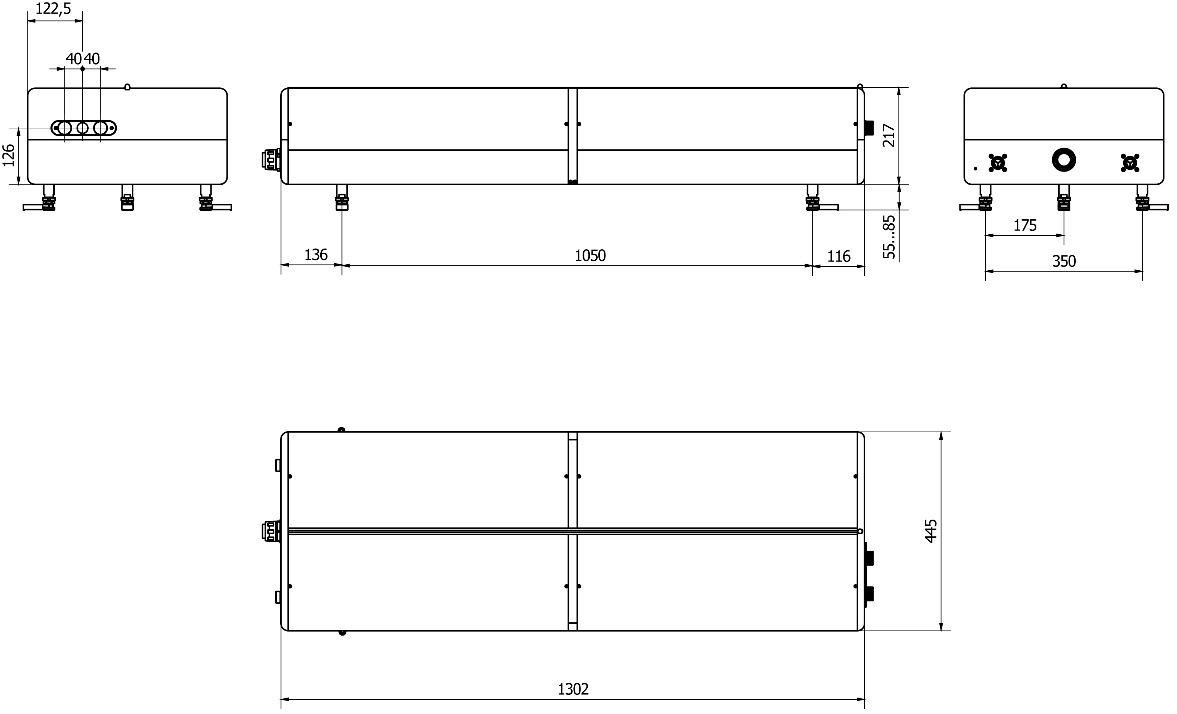

Laser Head

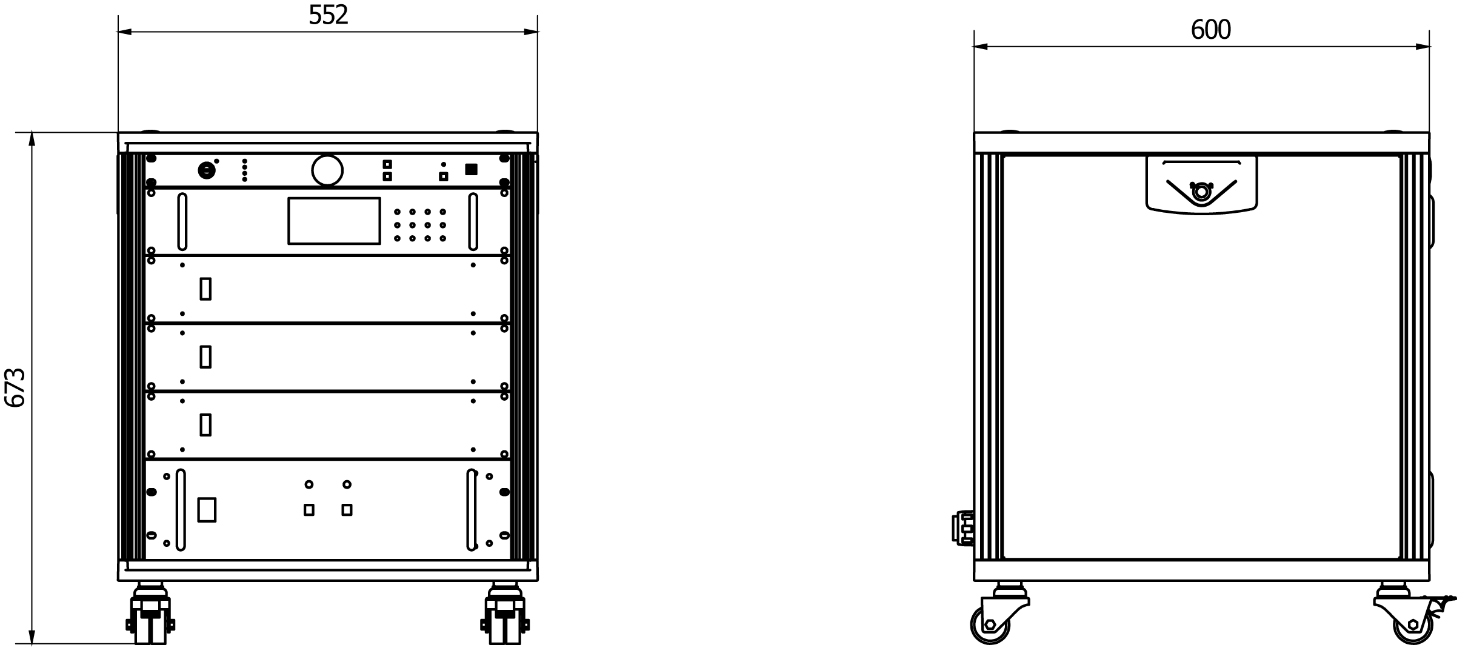

Laser Controller
Transferal Beam Profile at Focal Plane
Temporal Beam Profile
