Description

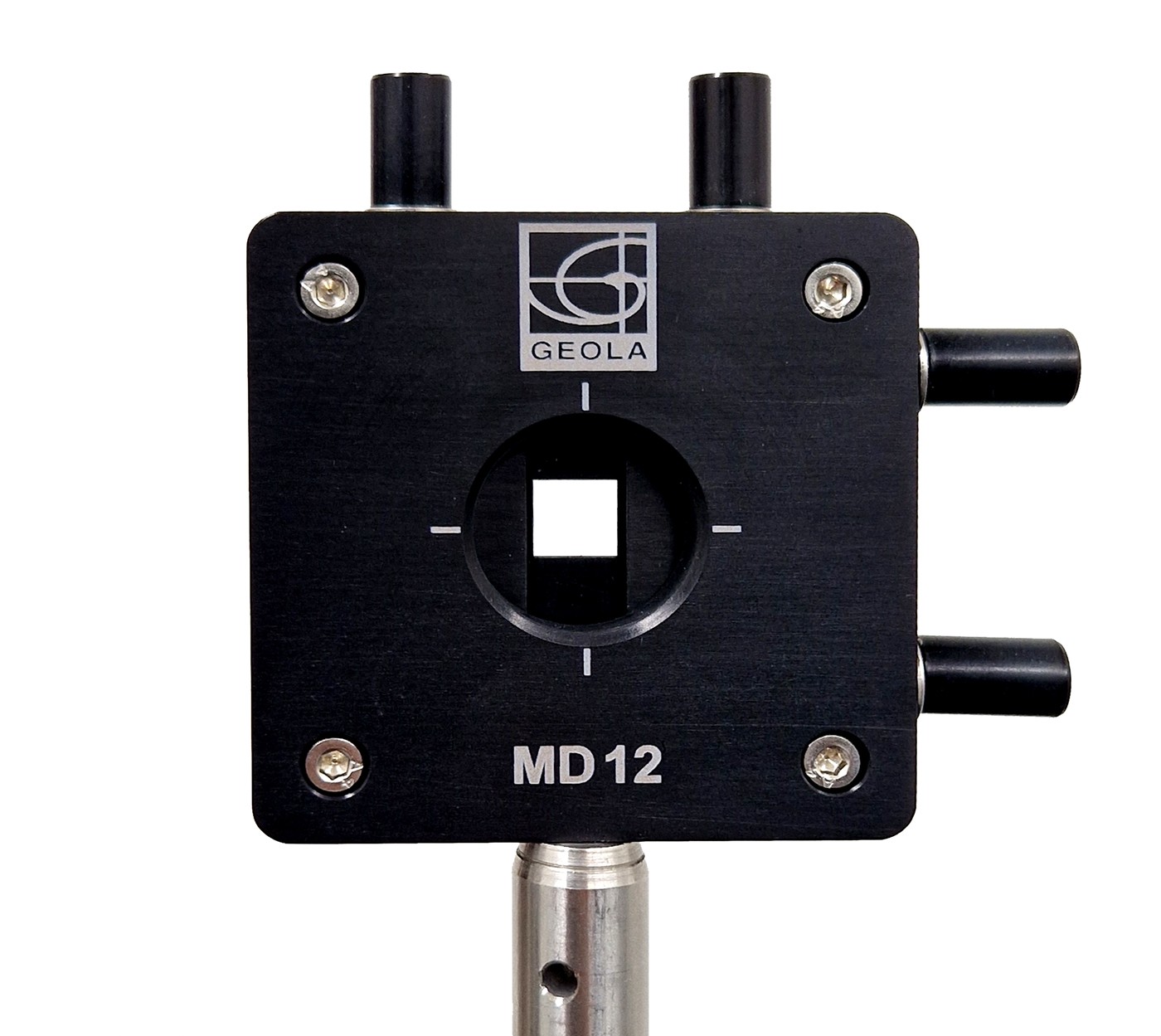

Mechanical Diaphragm MD12
Mechanical Diaphragm MD12 intuitively simple aperture control consists of 4 independently-controlled aluminum sliding jaws, which can form either rectangle or square aperture of any size within 0…12mm range. Black anodized finish aluminum blades greatly reduce unwanted reflections.
Features
- Clients inspired very handy design
- Easy adjustable ranging from 0 to 12 mm
- MD12 housing may contain optional C-mount compatible mounting bed for external optics (optional)
Specifications
| Specification | Value |
|---|---|
| Aperture Shape | Square or Rectangle |
| Material (body) | Aluminum |
| Material (blades) | Aluminum (Brass – optional) |
| Aperture Size | 0…12 mm |
| Mechanical Size (W × H × L) | 60 × 60 × 15 mm |
| MD12 Mounting thread | 2 × M4 |
Dimensions
