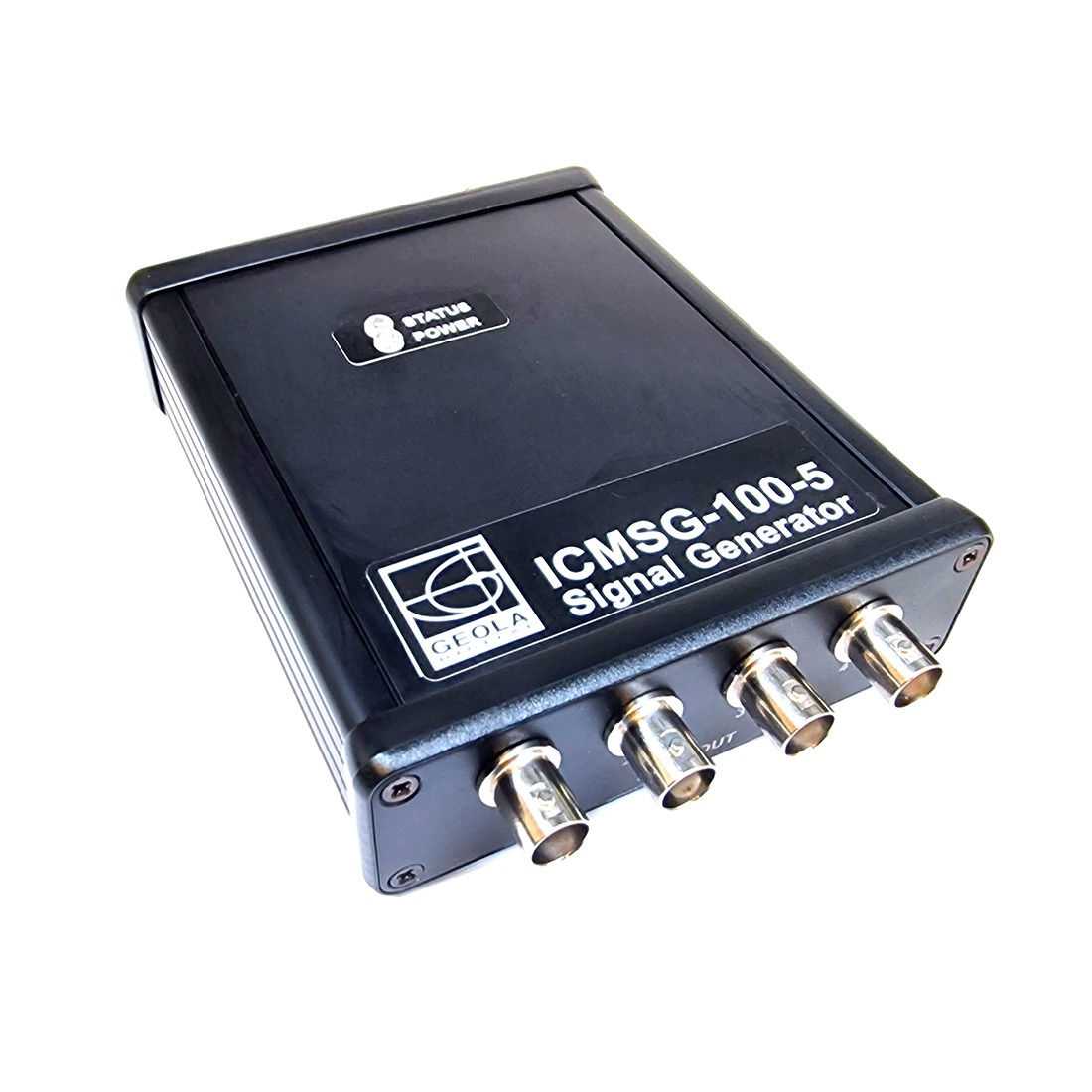

ICMSG-100-5 Digital Pulse/Delay Generator

Category:

Description

Overview

The ICMSG-100-5 Digital Pulse/Delay generator is a four-channel device designed for synchronizing various equipment, with its primary application in scientific and technological industry (for example – laser photonics).

Key features

1. Frequency Range:

  • The ICMSG-100-5 Digital Pulse/Delay generator operates within a frequency range of 1 Hz to 100 Hz.

    2. Output Signal:

    • The output signal is a 5V CMOS waveform (with a possible range of 5V to 20V upon request).
    • It exhibits high noise immunity and has a jitter of less than 1 ns.

    3. Compact Design and Low Power Consumption:

    • The ICMSG-100-5 Digital Pulse/Delay generator boasts small dimensions and consumes approximately 150 mA of power from 24V DC.
    • Its compact form factor makes it suitable for various applications.

    4. RS485 Interface:

    • The Digital Pulse/Delay generator features a convenient RS-485 interface for communication.
    • An RS-485 USB Type B converter is available upon request.

    5. Individual Channel Configuration:

    • The standout feature of the ICMSG-100-5 Digital Pulse/Delay generator is the ability to independently configure each of its four channels.

    Note that there’s a version called CCMSG-100-5 without individual channel configuration, where all channels operate at the same frequency.

    User-Controlled Parameters

    Users can manage the following parameters:

    1. Frequency:

    • Set the frequency within the range of 1 Hz to 100 Hz.

    2. Channel Activation/Deactivation:

    • Enable or disable each channel individually without affecting others.

    3. Individual Pulse Delay and Duration:

    • Configure individual pulse delays and durations (up to 900 microseconds with a 1-microsecond step).

    4. Operating Modes for Each Channel:

    • Internal Generation Mode:

    – The channel generates signals at a specified overall frequency.

    • External Trigger Mode (5V Trigger or Software):

    – The channel waits for an external trigger and emits a synchronized pulse at the set frequency.

    – Users can define a prohibition time (1 to 10,000 seconds) after triggering, during which the channel remains blocked.

    – Other channels can continue operating during inhibition time.

    – Individual (software) and global triggers (5V external signal or software) are available.

    • Signal Division Mode:

    – Channels can generate signals with skips, emitting only every nth signal (n ranging from 2 to 65,000).

    – This allows achieving virtually any divided frequency on a specific channel.

    Example Scenario

    1. Set the overall frequency to 20 Hz.

    2. Configure the channels as follows:

    • Channel 1: Internal generation mode (20 Hz)
    • Channel 2: Division by 2 (10 Hz, skipping every second signal)
    • Channel 3: Division by 4 (5 Hz, emitting every fourth signal)
    • Channel 4: External trigger mode (waits for an external trigger, shots synchronized with other channels)

    Remember that each channel retains its individual delays and pulse durations.

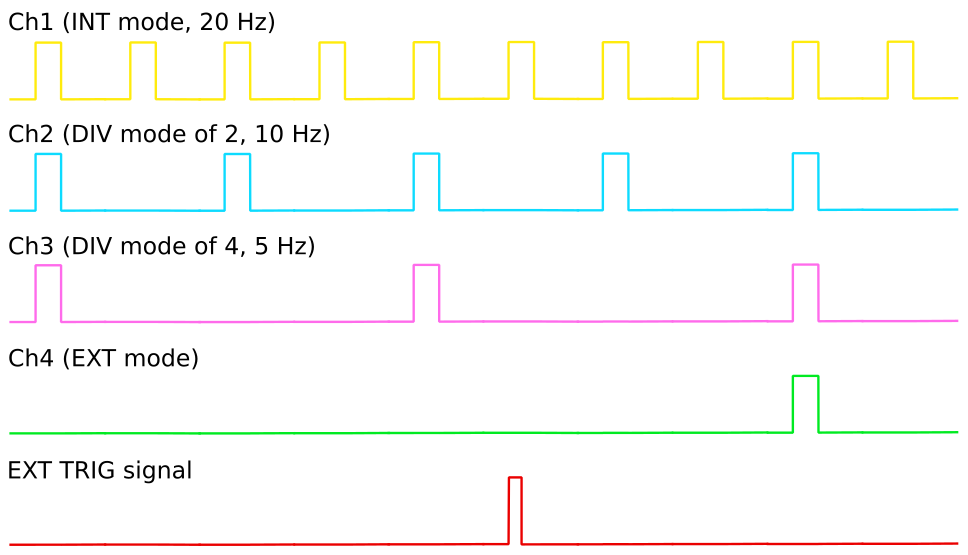

    Example scenario output time diagram
    Example scenario output time diagram

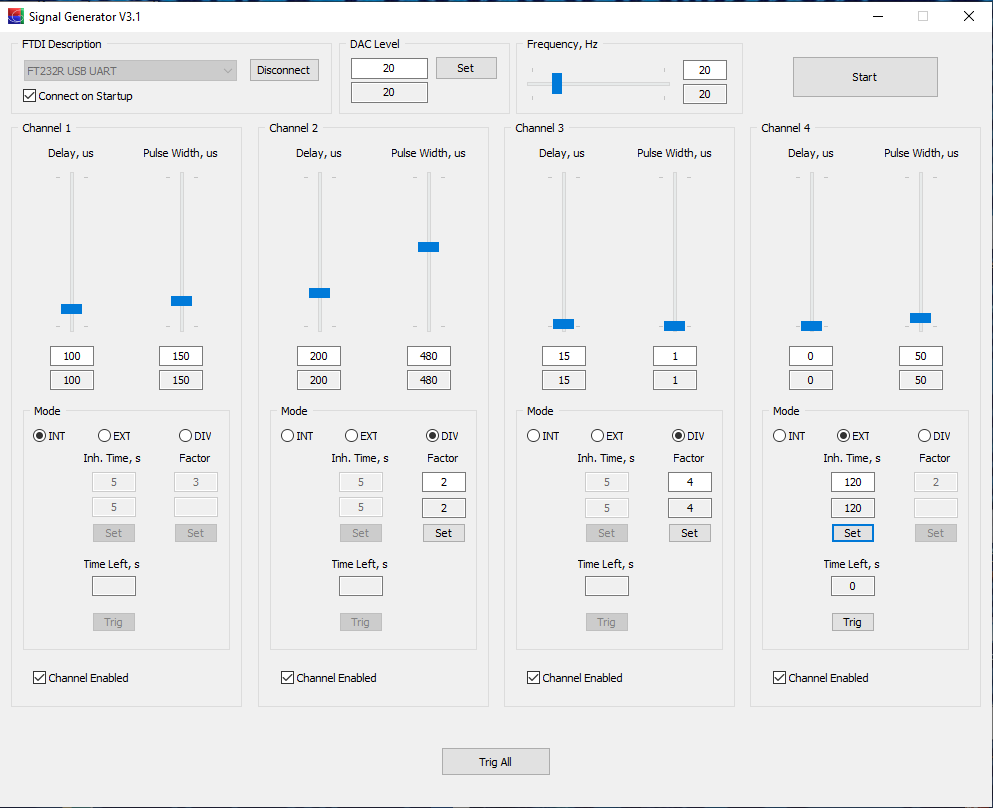

    User GUI software window
    User GUI software window

    Specifications

    ICMSG-100-5 ModelCCMSG-100-5 Model
    Power source24 V DC
    Current~150 mA
    Frequency*1 to 100 Hz
    Frequency resolution1 Hz
    Pulse width1 to 900 µs
    Pulse width resolution1 µs
    Pulse delay1 to 900 µs
    Pulse delay resolution1 µs
    Number of channels4
    Output signal typeCMOS (TTL compatible)
    Output level5 V (5-20 V upon request)

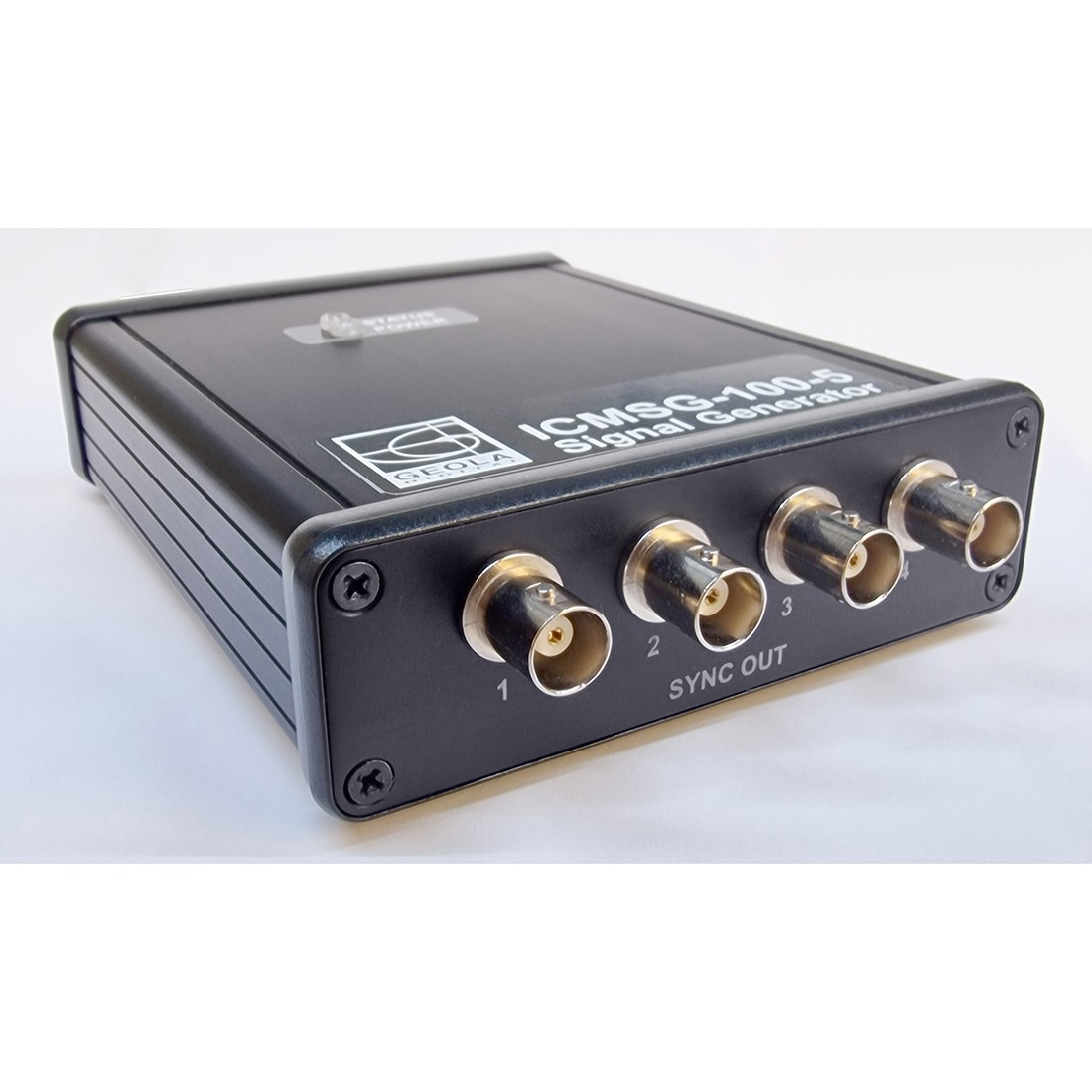

    Output connectorSMA (BNC in option with case)
    Signal jitter≤ 1 ns
    Channel modesEach channel individually: INT; DIV (2 to 65000); EXT with inhibit time option, external 5 V signal or from softwareINT or EXT modes only, EXT by external trig signal

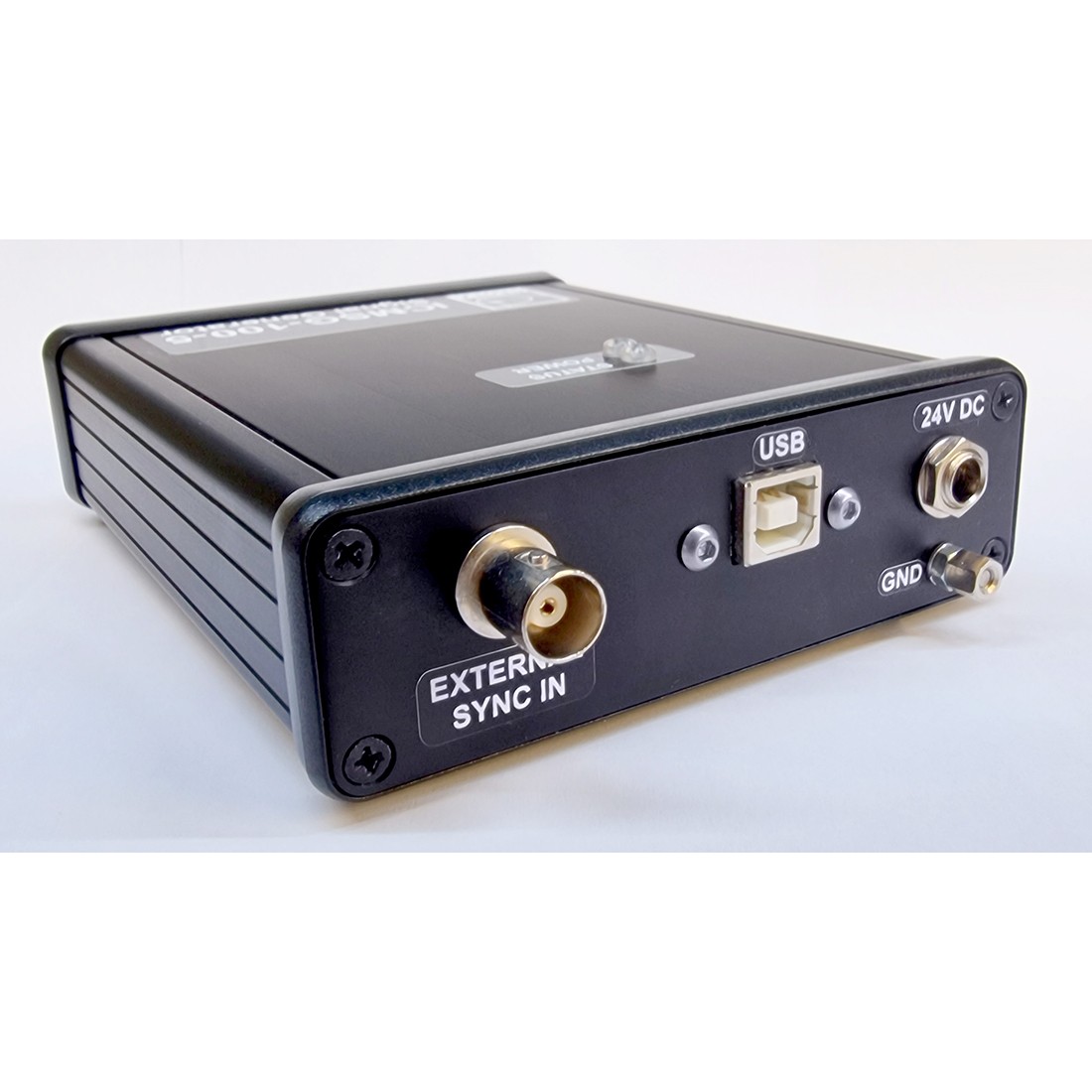

    InterfaceRS-485 (RS-485 to USB adapter available upon request or with case option)
    Additional functionsInterlock connector (NC), physical start button, state indicator LED, user GUI software
    * Other repetition rates can be available upon request.

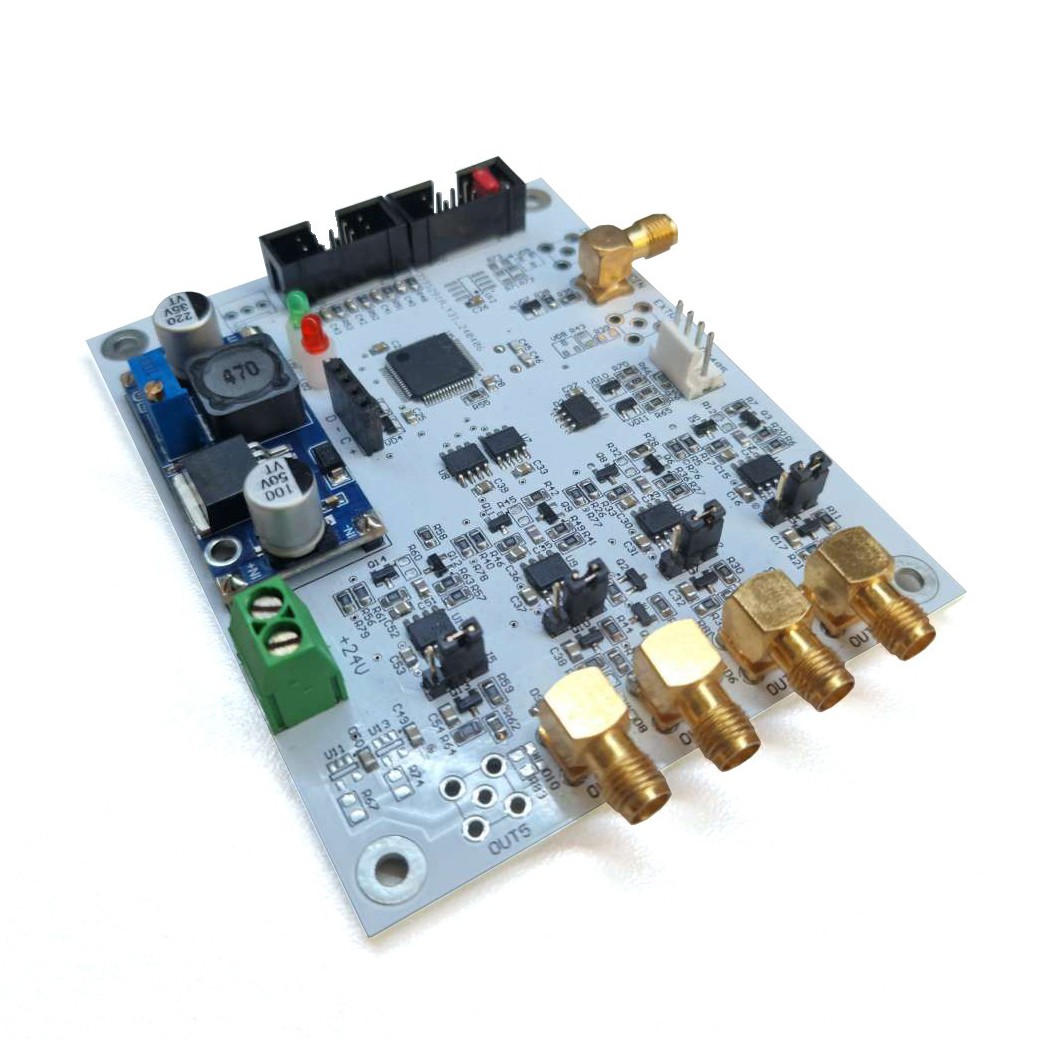

    Technical Details

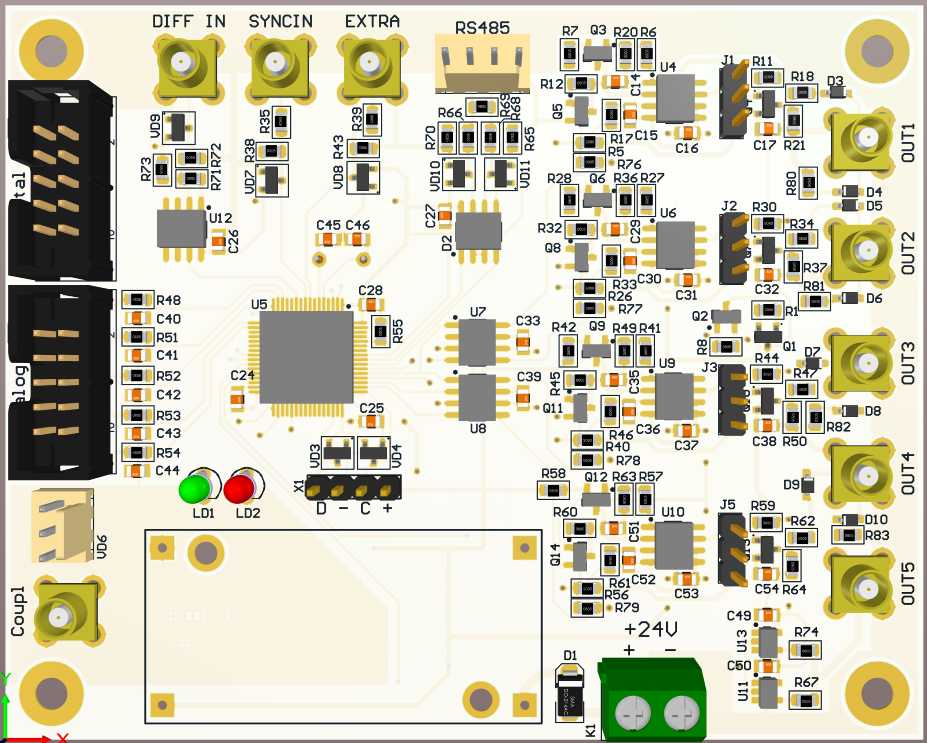

    ICMSG-100-5 Digital Pulse/Delay generator board 3D model
    ICMSG-100-5 Digital Pulse/Delay generator board 3D model
    Digital In connector pin numbering
    Digital In connector pin numbering
    PinFunction
    1, 3, 5, 7, 9GND
    2Interlock (+3.3 V pull up)
    4Start button illumination (+3.3 V when generator is started, 0 V – stopped)
    6Start button input
    8External state indicator LED
    10Reserved
    Generator RS-485 connector pinout
    Generator RS-485 connector pinout
