Description

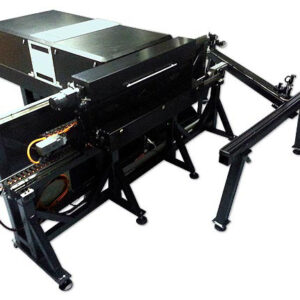

Replicator EXLIBRO-200R

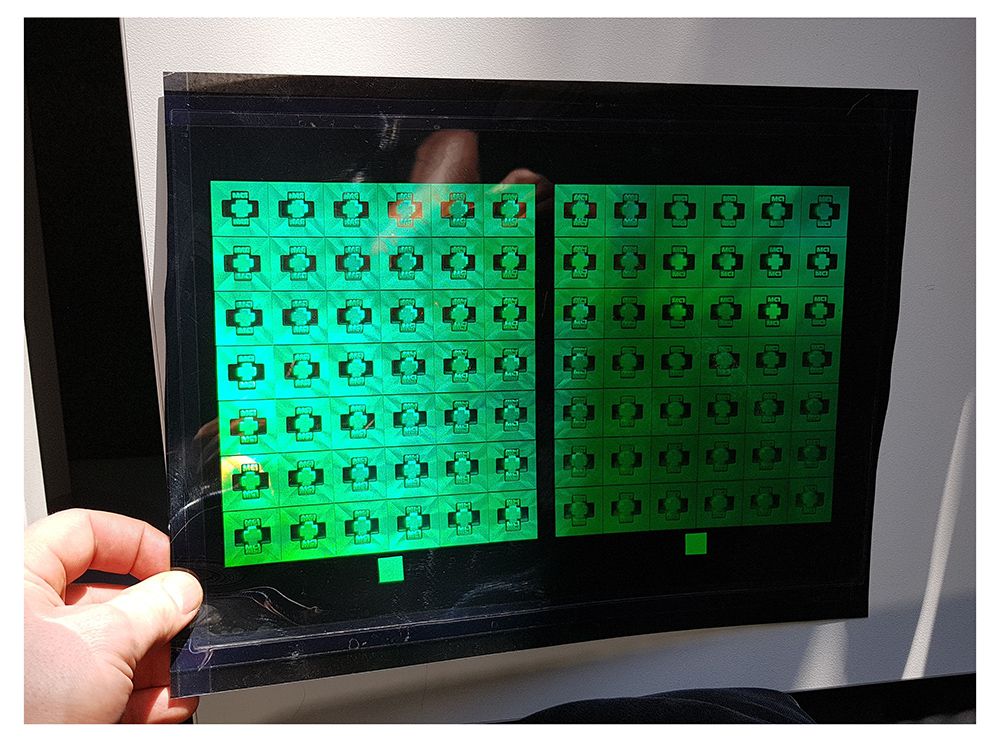

Volume hologram replication machine is designed to copy holographic gratings from volume reflection holograms to photosensitive material coated on film substrate. Holographic image copying principles employed in the device were invented by Geola’s experts and are described in full in our patent WO2009035310.
Volume hologram replication machine EXLIBRO-200R consists from two main modules:
- Optical module is based on mechanical breadboard consisting of monochrome or RGB pulse lasers, and necessary optical tools which shapes laser beam used for holographic image transfer from volume master hologram to the photopolymer.

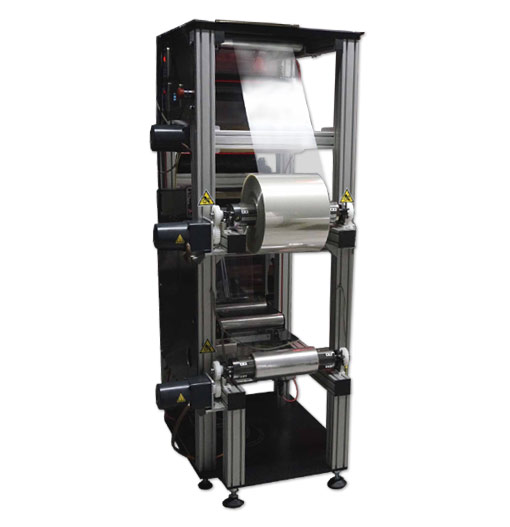

- Film guiding assembly consisting of necessary film guiding rolls, automatic web guiding devices, sensors, pre-exposure and post-exposure adjustable lighting systems.
Replicator’ main system parameters are controlled via PC through supplied software. The software also controls pulsed RGB laser which can be supplied together with the Replicator. The existing customer’s lasers also can be driven by Replicator’s software. Set of autonomous sensors performs monitoring of condition of photosensitive film tension and copying speed.
Options
- In-line pre-exposure illumination
- In-line post-exposure illumination
- In-line coating of liquid photopolymers.
Typical Specifications*
| Description | Parameter |
|---|---|
| Width of photosensitive film / track spindles | up to 220 mm / 300 mm |
| Working width of copying slit | 200 mm |
| Copying drum diameter | 97.2 mm |
| Copy drum in multiples of 25.4 mm | YES |
| Default slit lighting direction | ~45 degrees |
| Default slit lighting direction adjustment (from – to) | 35 – 55 degrees |
| Slit exposure speed (film track speed) | 1…400 cm/min |
| Laser radiation in the working slit has a flat wavefront in the horizontal plane | YES |
| Photo materials to replicate image from volume master hologram | Photopolymers or Silver Halide film rolls |
| Light sensitive materials used | Photopolymer & Silver Halide film rolls |
| The copying device is designed as touch free separate unit from Film advance unit | YES |

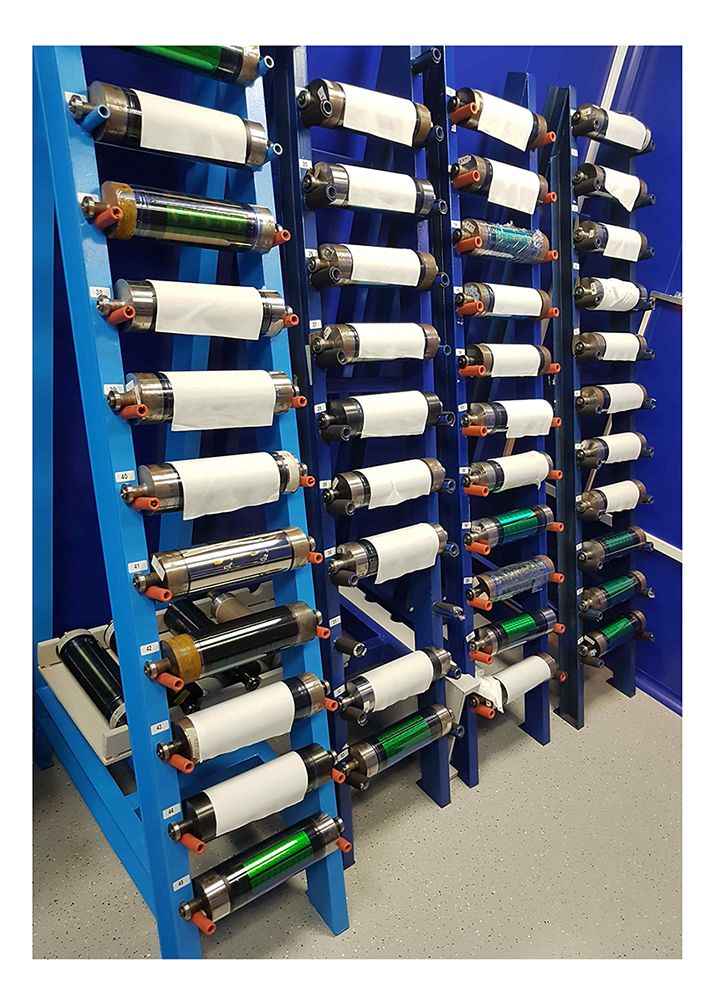

| Master drum quantity | 2 pc. |
| Material heat treatment after exposure | YES (optional) |
| Magnetic master drum | YES (optional) |
| RGB Laser type | CW or Pulsed |
| RGB laser wavelengths | 640/532/457 nm |
| Light sensitive material supply (Photopolymer or Silver-Halide) | LBC-3EC |
| System requires pressed air supply | up to 6 bar |
| Light sensitive material supply (Photopolymer or Silver-Halide) | Geola Digital |
*Parameters marked typical are not specifications. They are indications of typical performance and will vary with each unit we manufacture.
